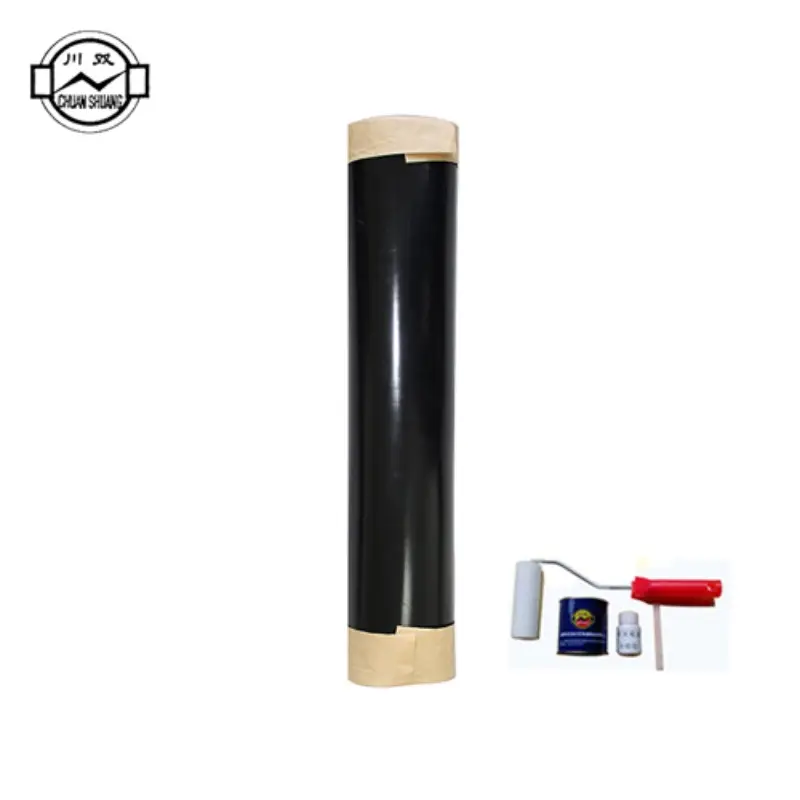

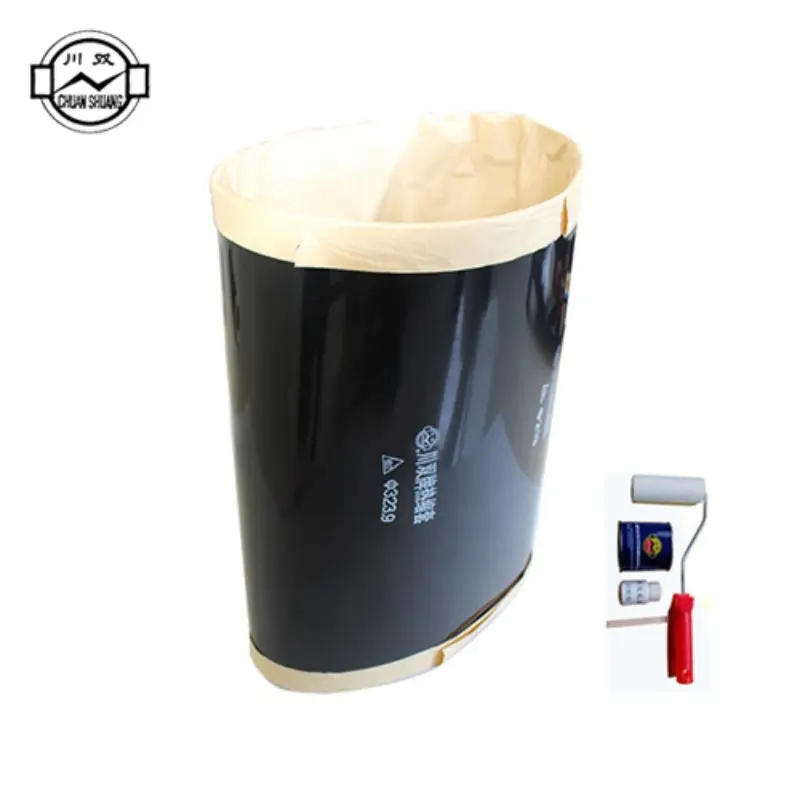

Heat-Shrinkable Sleeve Tape (Round Type)

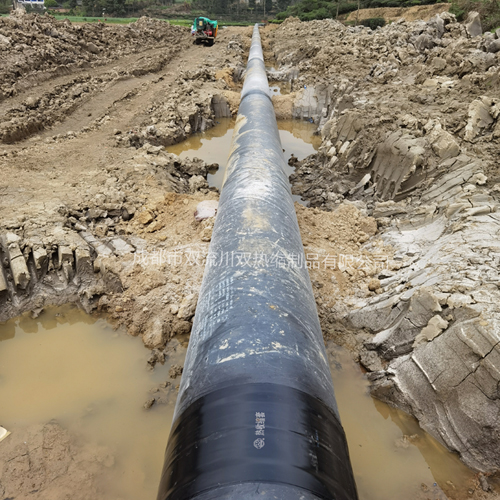

This heat-shrinkable sleeve, also known as tubular heat-shrink sleeve, is designed for corrosion protection at pipeline girth welds in oil/gas transmission systems, urban gas networks, heating pipelines, and water supply pipelines. Composed of radiation-crosslinked polyolefin backing and specialty hot-melt adhesive, it bonds securely to polyethylene substrates, steel pipes, and epoxy coatings. When heated, the sleeve shrinks radially while the adhesive melts, forming a continuous protective layer that integrates with existing pipeline coatings.

Chuanshuang’s heat-shrink sleeves demonstrate high mechanical strength, extended service life, and superior resistance to corrosion, aging, environmental stress cracking, UV degradation, and mechanical impact. The products are certified by:

CNPC Corrosion & Insulation Quality Supervision Center

PipeTech Research Center of China Petroleum Pipeline Company

PipeTech Research Center of PipeChina North Pipeline Company

Structure:
i) Three-layer version (with primer):

Base: Solvent-free two-component epoxy primer

Middle: High-performance hot-melt adhesive

Outer: Radiation-crosslinked polyethylene

ii) Two-layer version (primerless) also available

Features:
High mechanical strength and aging resistance
Excellent environmental stress performance
Superior adhesion properties
Outstanding cathodic disbondment resistance
Easy installation
Compliance with domestic/international standards

Applications:
Oil/gas pipelines
Subsea pipelines
Compatible with PE, FBE, and coal tar enamel coatings
Suitable for pipe diameters: 18mm to 813mm
Operating temperature: -40°C to 80°C
Max. width: ≤700mm
Packaging: Per pipe diameter/set

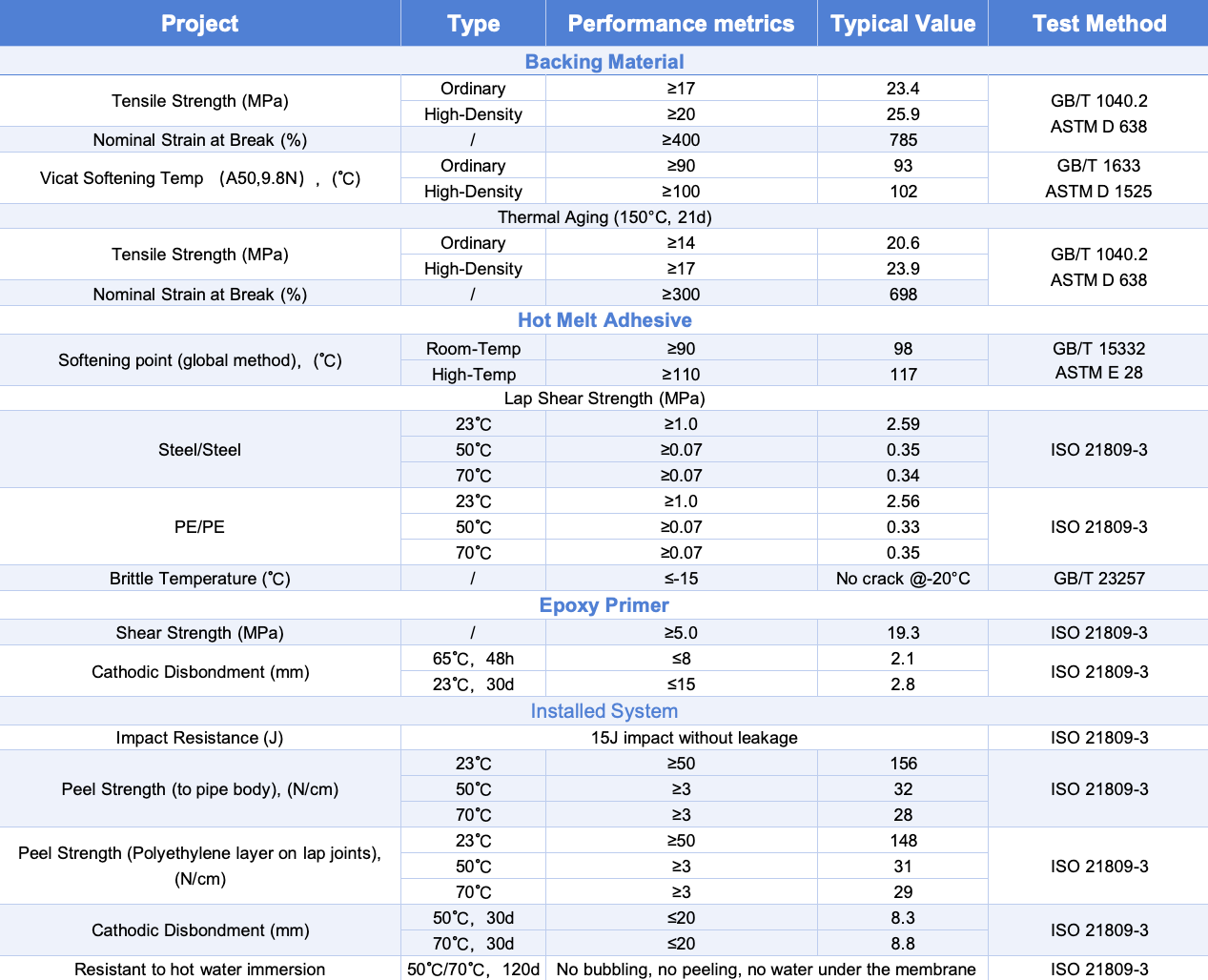

Specifications:
Backing thickness: 1.0mm to 1.8mm
Adhesive thickness: 0.6mm to 1.5mm

Types:
Standard type: Max. design temperature ≤60°C
High-temperature type: Max. design temperature ≤80°C
